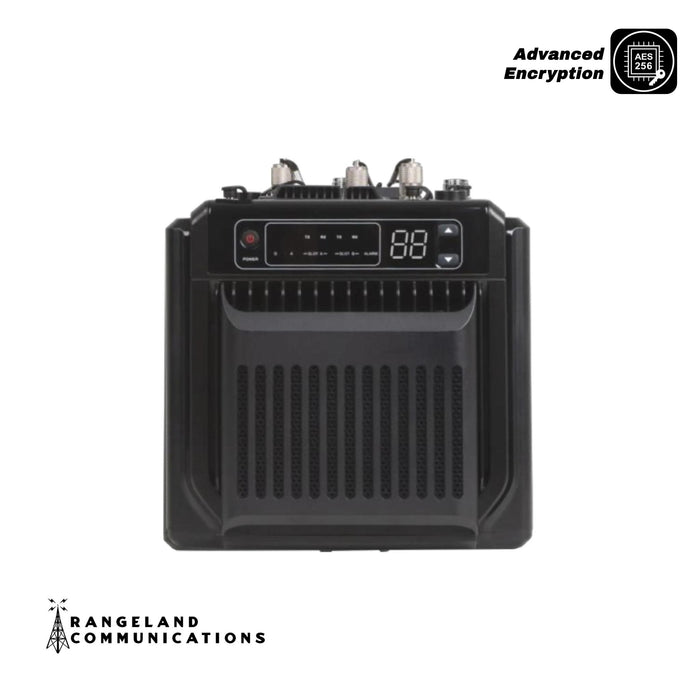

Hytera HR652 Compact DMR Repeater

Notes:

• There is an optional integrated Hytera battery pack for mobile use or backup power. The power supply is required to charge the battery or power the repeater via a wall outlet.

• No Duplexer is required if you are using the repeater in Single Frequency Repeater mode (SFR) or if you elect to use two antennas. However, if you want to use a single antenna in conventional repeater mode the duplexer is required.

• AES-256 license upgrade is only needed if you want to transmit with AES-256 or receive AES-256 encrypted transmissions directly from the repeater. The repeater will pass AES-256 encrypted traffic without the license upgrade.

• If you have any questions about this product please feel free to contact us.

• HR652 Repeater
• DC power cable (power supply required)

Repeater Features:

• UHF 400-470MHz

• SFR (Single Frequency Repeater)(Optional)

• Compact Size 7 5/16” x 8 5/16” x 3 3/16”

• Weight 4lb, 6oz (2.0kg)

• 1024 Channels, 1 zone ( 64 channels per zone)

• AI-Based Noise Cancellation

• 100% continuous duty cycle

• Accessory Port

• Ethernet RJ-45 Port

• DC Powered 14.4V ±15%

• Optional 14.4V/12.5Ah/1800W Battery (charged with PS8002)

• Easily installed on flat surfaces or used as portable repeater

• Supports two simultaneous voice paths in digital mode

• Supports operation in Analog and Digital mode

• Auto detection between analog mode and digital mode

• Multiple CTCSS/CDCSS in analog and mixed channel

• Advanced heat sink design with fan for durable operation

• Basic encryption (ARC4) (AES-256 with optional upgrade)

• Enhanced AES encryption (license required)

• SIP capable to support telephone interconnect

• XPT digital trunking (license required)

• IP Site Connect (Analog and Digital mode) (license required)

• 3 Year Standard Warranty (Repeater only, not Accessories)

Optional Features
