Hytera HR652 Compact DMR Repeater

Original price $2,200.00 - Original price $2,200.00
Original price
$2,200.00
$2,200.00 - $2,200.00
Current price $2,200.00
Read the HR652 Overview Blog Post



Notes:

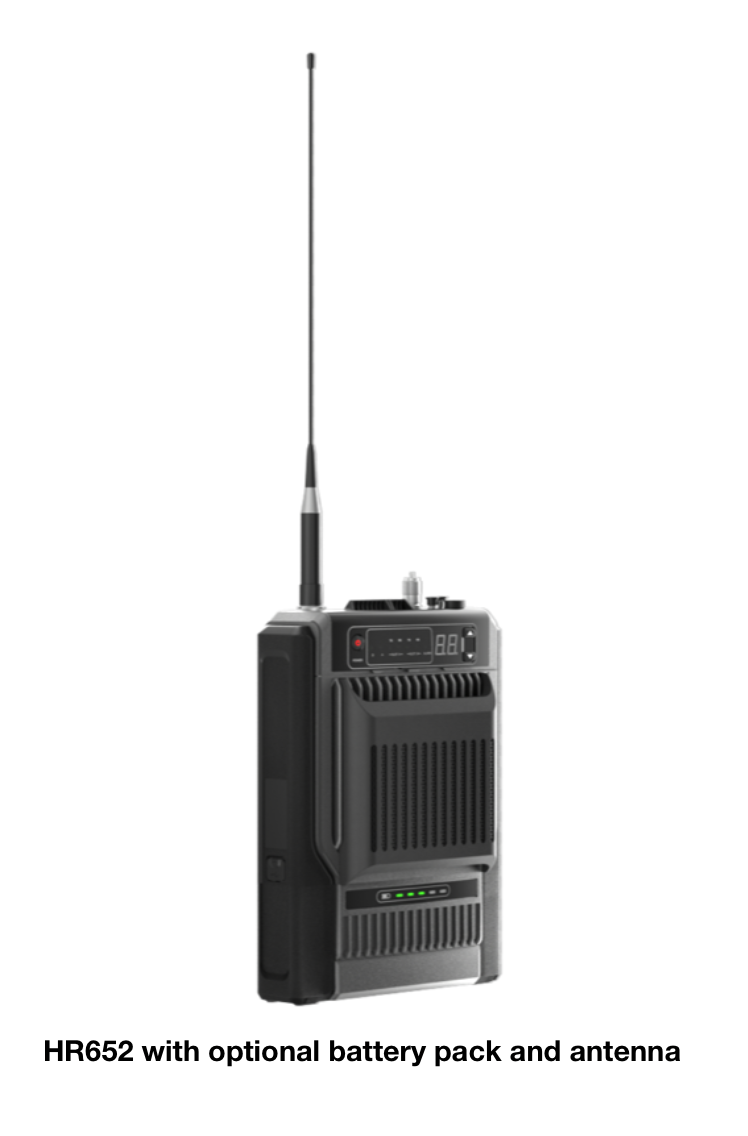

  • There is an optional integrated Hytera battery pack for mobile use or backup power. The power supply is required to charge the battery or power the repeater via a wall outlet.
  • No Duplexer is required if you are using the repeater in Single Frequency Repeater mode (SFR) or if you elect to use two antennas. However, if you want to use a single antenna in conventional repeater mode the duplexer is required.
  • AES-256 license upgrade is only needed if you want to transmit with AES-256 or receive AES-256 encrypted transmissions directly from the repeater. The repeater will pass AES-256 encrypted traffic without the license upgrade.
  • If you have any questions about this product please feel free to contact us

Included:
  • HR652 Repeater
  • DC power cable (power supply required)

Repeater Features:

  • UHF 400-470MHz
  • SFR (Single Frequency Repeater)(Optional)
  • Compact Size  7 5/16” x 8 5/16” x 3 3/16”
  • Weight 4lb, 6oz (2.0kg)
  • 1024 Channels, 1 zone ( 64 channels per zone)
  • AI-Based Noise Cancellation
  • 100% continuous duty cycle
  • Ethernet RJ-45 Port
  • DC Powered 14.4V ±15%
  • Optional 14.4V/12.5Ah/1800W Battery (charged with PS8002)
  • Easily installed on flat surfaces or used as portable repeater
  • Supports two simultaneous voice paths in digital mode
  • Supports operation in Analog and Digital mode
  • Auto detection between analog mode and digital mode
  • Multiple CTCSS/CDCSS in analog and mixed channel
  • Advanced heat sink design with fan for durable operation
  • Basic encryption (ARC4) (AES-256 with optional upgrade)
  • Enhanced AES encryption (license required)
  • SIP capable to support telephone interconnect
  • XPT digital trunking (license required)
  • IP Site Connect (Analog and Digital mode) (license required)
  • 3 Year Standard Warranty (Repeater only, not Accessories)

Optional Features

  • Hytera Battery Pack Li-ion 12500mAh for HR652
  • AC/DC Power Adapter 100~240VAC/2A 16.8V/8A Power adapter for repeater HR655. Required to charge the optional battery.
  • Hytera integrated Duplexer, 6 cavity mobile SMA con., 5 MHz sep., 450-470 MHz Mobile Repeater
  • SFR (Single Frequency Repeater) Software license

Our blog article on the HR652 has a ton of great info on all of the options and features of this product. Be sure to check out the FAQ section. If you have any questions about this product please feel free to contact us
